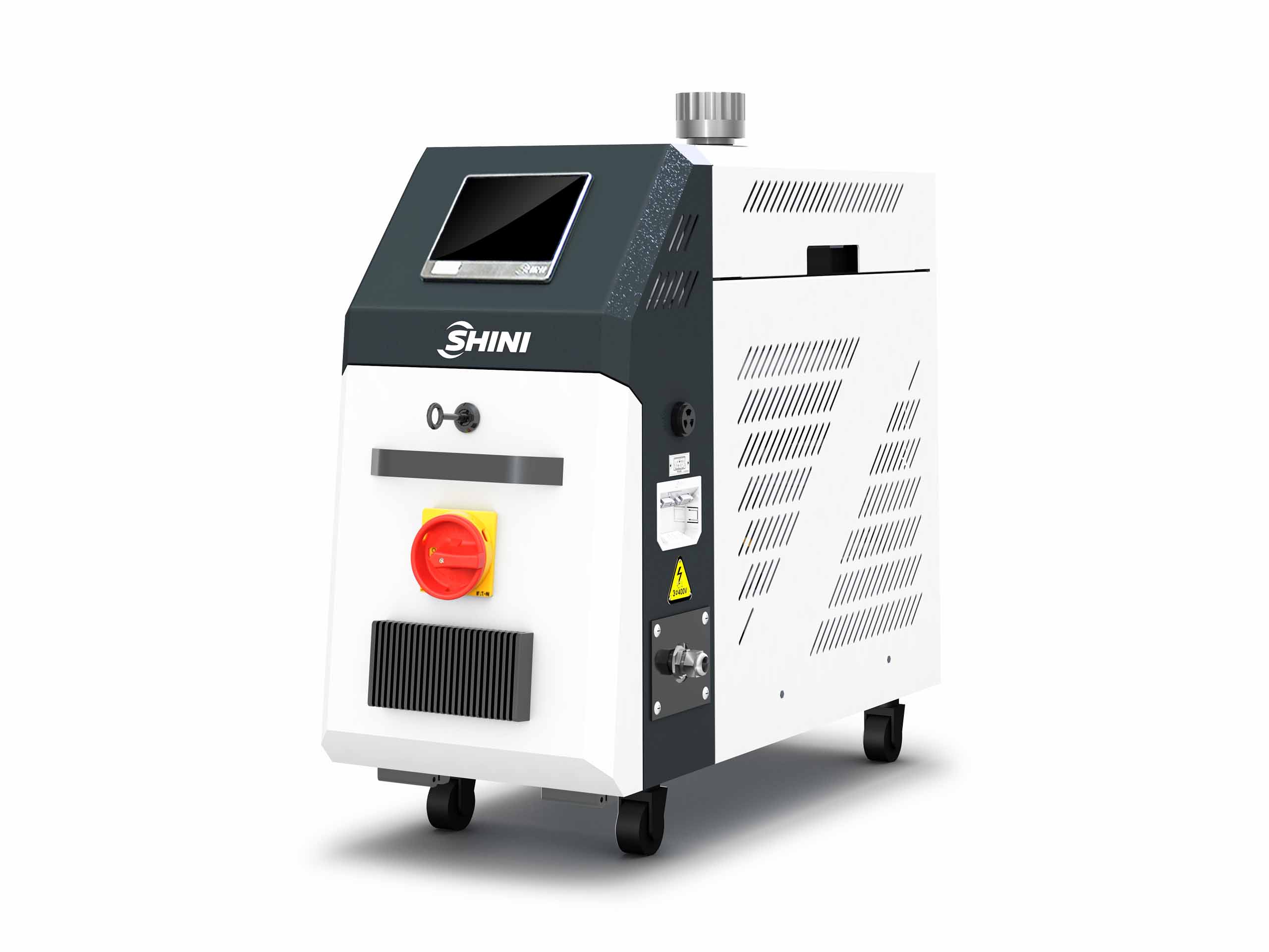

Mould Temperature Controller

DownloadDownload InquiryInquiry

    • Heating/Cooling Tank

      Heat up and cool down the water to make the water temp. reach the required temperature.

    • Pump

      Use turbo pump to offer power source for water to run between the mold
      and the machine itself.

    • Internal structure

       Internal structure
    STM series mould temperature controllers work with heat transfer oil as a heat transfer medium, which heats the mould and maintains its temperature for the right injection process. The series comes in three maximum temperature models: standard, high, and ultra-high temperature models. The standard model has a maximum working temperature of 200°C, the high model has a maximum working temperature of 300°C, and the ultra-high model has a maximum working temperature of 350°C.

    The heated oil is returned from the mould to the tank with cooling coils, and the oil can be chilled by indirect cooling with water. The high-pressure pump pressurizes the oil to the heating tank and the mould at a steady temperature with a precision of ±1℃. Hence, they can be used in other similar applications.

    Features

    • For standard STM, the maximum heating temperature can reach up to 200℃/392℉, while the maximum heating temperature of STM-HT can reach 300℃/572℉.
    • P.I.D controller with 4.3" LCD with a intuitive and user-friendly interface.
    • Weekly timer with ℃/℉ unit conversion.
    • Adopt digital P.I.D. multi-stage controller can maintain stable mould temperature with a precision of ±0.5℃/0.9oF.
    • SSR solid state relay
    • STM in build an efficient high temperature pump. STM-HT is equipped with magnetic pump, and the interior is made of stainless steel for high pressure explosion-proof without leakage;
    • In build multiple safety plus warning devices, such as reverse phase, pump overload, overheat, and low oil level alarm.
    • Stainless steel pipe heater.
    • Standard equipped with flow display and pump reverse function for oil return.
    • RS485 communication interface achieves centralized monitoring with the host.
    • Standard buzzer
    • Displays of mould temperature and return oil temperature of mould are optional, and add “TS” at the end of the model code.
    • For models optional with magnetic pump (excluded for STM-3650 and STM-D models), add “M” at the end of the model code.
    • It could option with magnetic filter to prolong service life of magnetic pump (only suitable for models with magnetic pump). Add “MF” at the   end of the model code.
