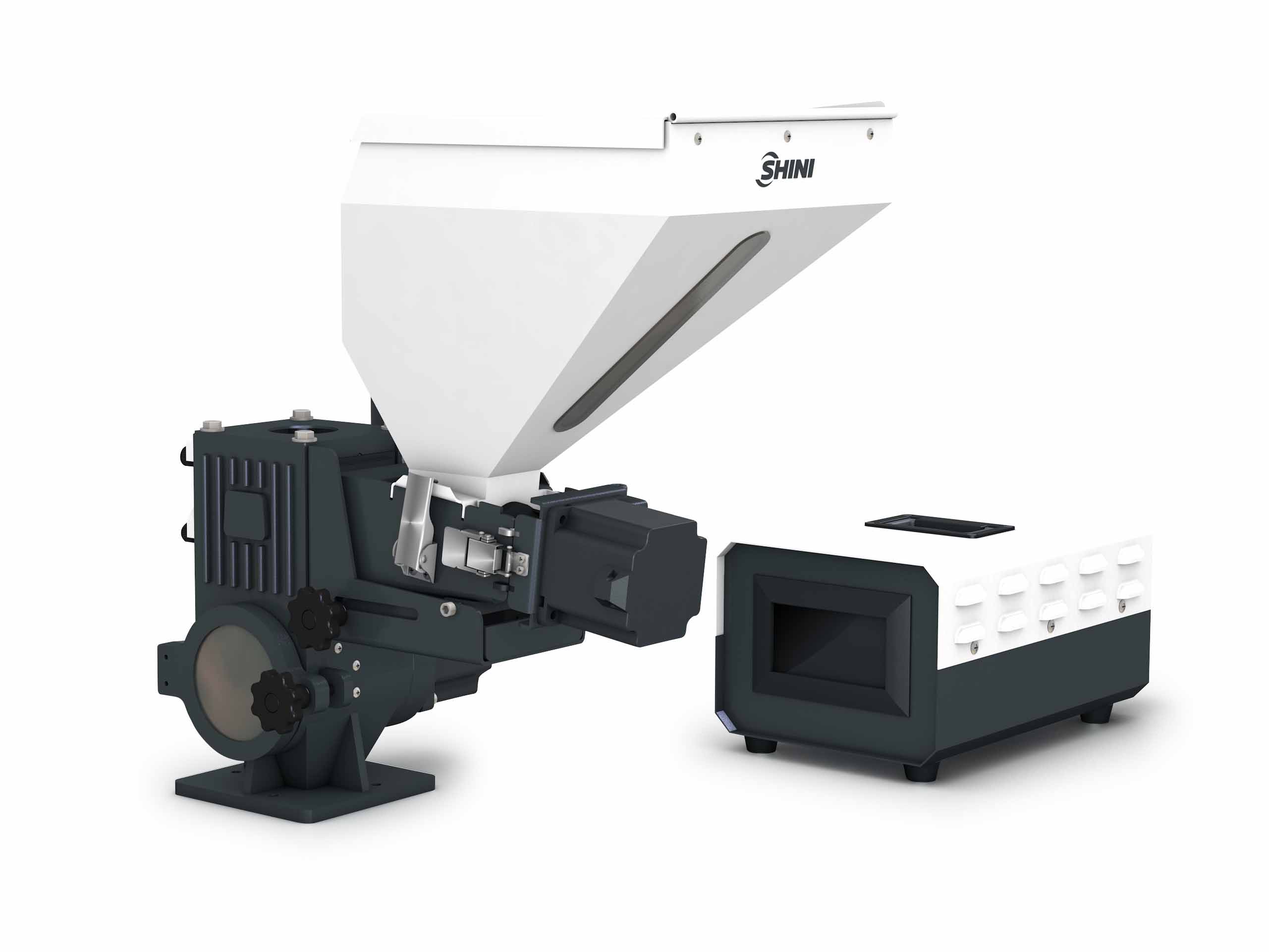

Budget Series Gravimetric Doser SGD-EB

DownloadDownload InquiryInquiry

    • Feeding Screw

      The feeding screw is driven by the feeding motor to rotate and take the masterbatch to the base under the rotation of the screw;

    • Hopper magnet

      Absorb the scrap iron and impurities in materials to avoid screw damage
    SGD-EB series dosers are suitable for auto-proportional mixing of virgin materials, regrinds, masterbatch or additives. The motor with gear ratio of 38:1 is coupled to a dosing screw of 12, 16, 20 or 30 mm in diameter to give a total of four models with the output ranging from 0.04-60kg/hr . Double color dosers can be assembled from two single color dosers according to customer’s requirement. SGD-EB supports the extruder mode. When working with the extruder, it only requires simple circuit adjustment that can achieve the linkage between the masterbatch metering and the rotating speed of extruder screw, so as to maintain stable additives proportion. Due to small additives proportion and dosage, SGD-EB can work with the Venturi Loader VL to realize auto feeding of the masterbatch.

    Features

    • Dosing screws are chrome plated for durability.
    •  Modular assembly structure for easy cleaning, disassembly and interchangeability.
    • Standard base equipped with hopper magnet to prevent screw damage of the IMM.
    • The current operation mode can be recorded, unaffected by power failure so operation would be resume to normal when power is on.
    • Set the manually discharging valve for easy replacement of master batch.
    • SGD is able to automatically monitor the dosing of masterbatch and additives.
    • Equipped with the RS485 communication port
    • Manipulate dosing process via loss-in-weight technology, satisfying the high requirement of production precision.
    • Up to 50 groups of recipes can be saved.
    • Suitable for injection molding machines and extruders
    • It is able to detect the blockage and overload of masterbatch and stop machine and sound alarms accordingly.
    • Machine halts and sounds alarm when motor faults.
